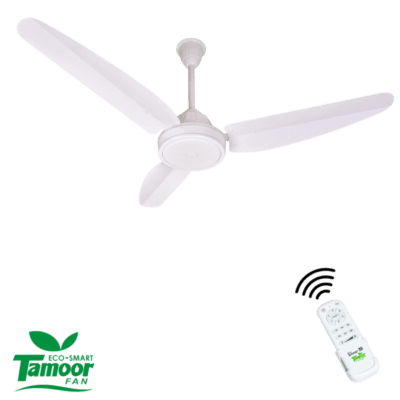

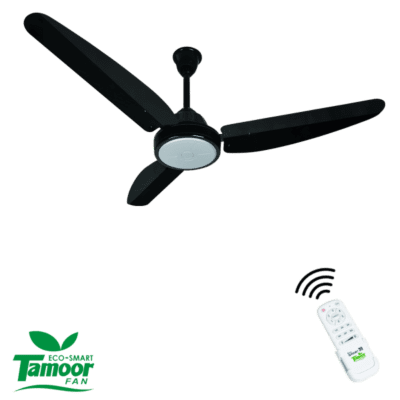

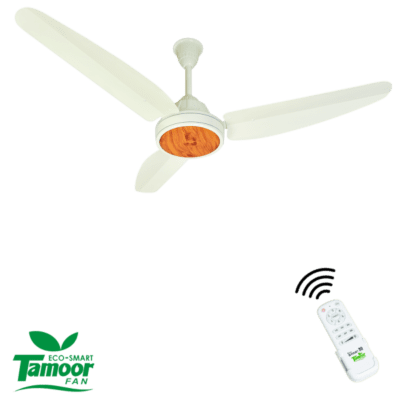

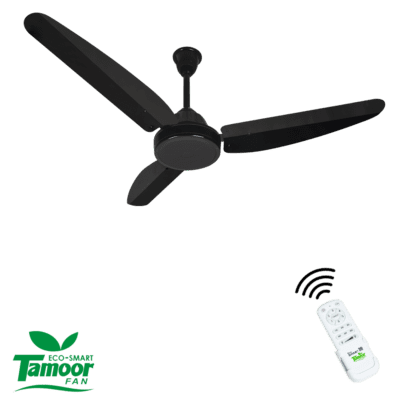

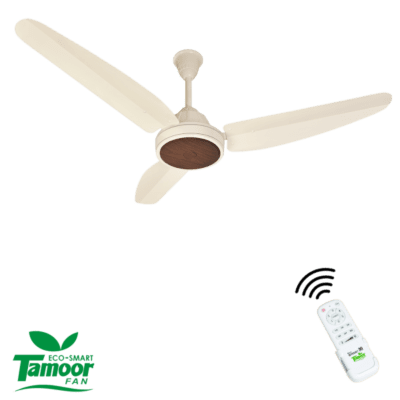

Tamoor Magnum Model 56″ | Eco-Smart Series (30 Watt)

Product Details

  • Size Available: 36’& 48′ & 56′.
  • Blades: 3 Blades.
  • Speed: 5 Speed.
  • Rated Power on AC: 5-30 Watts.
  • Input Voltage AC: 140-240v.
  • Rated Cycles 50.
  • RPMs: ≤ 350.
  • Power Factor 0.95.
  • Remote Control (RF).
  • RF (Radio Frequency with timer function 1h-6h).

12,100

مزید معلومات کے لیے

Features and Specs

  • PMSM (Permanent Magnet Synchronous Motor) with High Power Factor.
  • 30-Watt Power Consumption on full speed
  • Save Up to 70% of Energy Consumption as compared to Conventional Fan(100-watt)
  • High power factor
  • NoiselessMotor
  • 99% CopperWinding
  • Silicon Coated Electric Steel SheetArmature
  • RF Remote Control with Auto off timer function1h-6h
  • 10% Higher Air Delivery as compared to Conventional Fan(100Watt)
  • Stable Performance on low and high Voltage (140V~ –240V~)
  • Under and Over Voltage Protection (110V~ –280V~)



Product Warranty:

The company will provide 1 year PCB and 2 years motor warranty. For more info visit Warranty Claim

IMPORTANT: This fan must not be used with a dimmer. Using a dimmer will void all warranties.

Installation Instructions:

WARNING:

BE SURE TO TURN OFF THE ELECTRICAL SUPPLY AT THE CIRCUIT BREAKER BEFORE INSTALLATION.

INSTALLATION MUST BE DONE BY A QUALIFIED ELECTRICIAN ONLY.

DO NOT ATTEMPT TO INSTALL THE UNIT YOURSELF.

DO NOT USE WITH A DIMMER. ( IMPORTANT: using with a dimmer will void the warranty )



CAUTION:

  1. Improper installation may result in a risk of fire, electrical shock, or injury to persons.
  2. Be sure the fan is to be connected to the grounded outlet box.
  3. It’s ESSENTIAL that blades be NO LESS THAN 2.3 meters from the floor and that adequate clearance exists between the fan and adjacent walls, furnishings, etc.
  4. If the fan is operating abnormally, cut the power off immediately for inspection.
  5. T indicates suitable for tropical climates.
  6. Ta-Ambient temperature 45 C.
  7. Children should be supervised to ensure that they do not play with the appliances.



CLEANING:

Disconnect the electrical supply for safety purposes. Use a cloth with a neutral cleaning agent to clean the fan. Then wipe it with a dry cloth. DO NOT IMMERSE THE MOTORHEAD IN WATER.

Product Specification:

Size
Motor Type
Voltage
RPM
WATT
Speed Control
Power Factor
56”
PMSM
140-240
350
30
6 Speed Remote controlled
0.99
