Processor

• 6th Gen Intel Core i7-6600U Processor (4M Cache, 2.6GHz), Turbo Boost 2.0 (3.4GHz), vPro

Operating System

• Windows 10 Home 64-bit

Display

• 14.0" FHD (1920x1080), 250 nits, 700:1 contrast ratio, IPS, optional multi-touch
• 14.0" WQHD (2560x1440), 300 nits, 700:1 contrast ratio, IPS

Graphics

• Intel HD Graphics
• Intel HD Graphics in processor and NVIDIA GeForce® 930M, 2GB memory3

Memory

Up to 20GB, DDR4 2133MHz, 4GB memory soldered to systemboard, 1 x 204-pin SO-DIMM socket

Webcam

Integrated 720p HD Camera, low light sensitive, fixed focus

Storage1

• M.2 SSD, SATA 6.0 Gb/s: 128GB / 192GB / 256GB OPAL 2.0 / 512GB
• M.2 SSD, PCIe-NVME, 32Gb/s: 512GB

Optical drive

None

Dimensions (W x D x H)

331 x 226.8 x 16.9 - 18.8 mm

Weight

• Integrated graphics model: 1.36 kg
• Discrete model: 1.50 kg

Internal Battery

Front Li-Polymer 3-cell (23.5 Wh) and rear Li-Polymer 3-cell (26 Wh), both integrated

Battery life2

Up to 10.5 hours (MobileMark® 2014)

AC adaptor

45W or 65W

Keyboard

6-row, spill-resistant, multimedia Fn keys, optional LED backlight

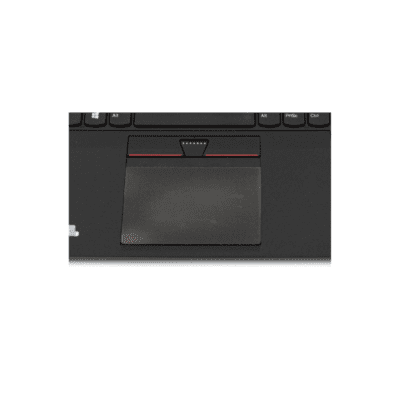

UltraNav™

TrackPoint® pointing device and buttonless crystal silk surface multi-touch touchpad

Fingerprint reader

Optional

Wireless LAN

• Intel Dual Band Wireless-AC 8260, 2x2, Wi-Fi + Bluetooth® 4.1
• Intel Tri-Band Wireless-AC 18260, 2x2, Wi-Fi + Bluetooth® 4.1, WiGig (WiGig model only)

Wireless WAN (optional)

WiGig is mutually exclusive with WWAN

Integrated Mobile Broadband 4G LTE (Huawei ME906S)

SIM card slot

Micro-SIM card slot (for models configured with WWAN card)

NFC

None

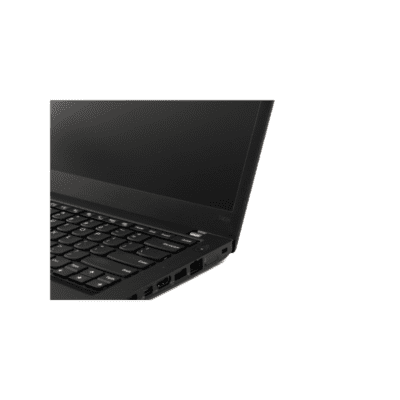

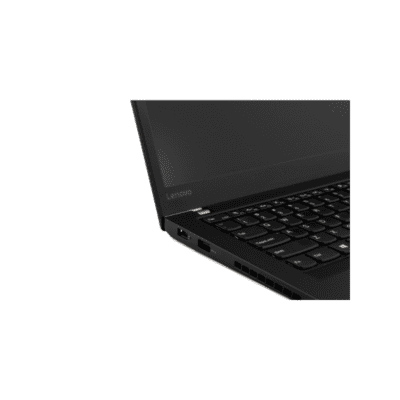

Ports

• 3 x USB 3.0 (1 x Always On)
• Ethernet(RJ-45)
• Mini DisplayPort™
• HDMI™
• 4-in-1 reader (MMC, SD, SDHC, SDXC)
• Combo audio/microphone jack
• Dock connector
• Optional Smart Card Reader
